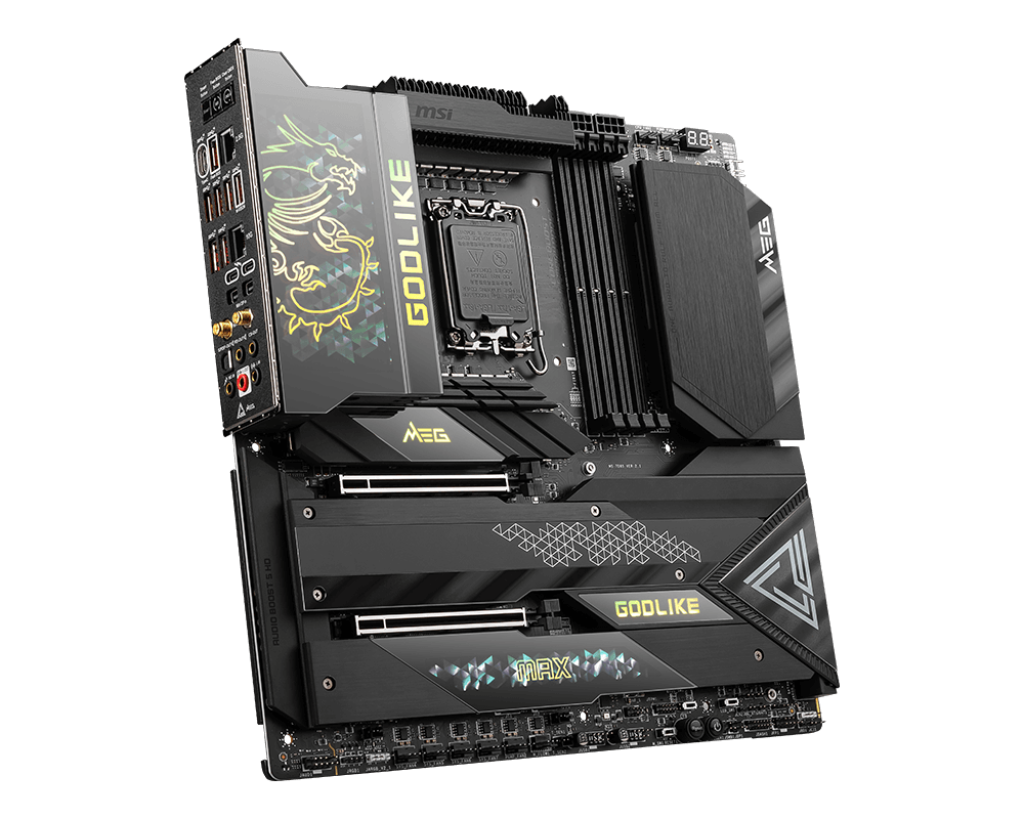

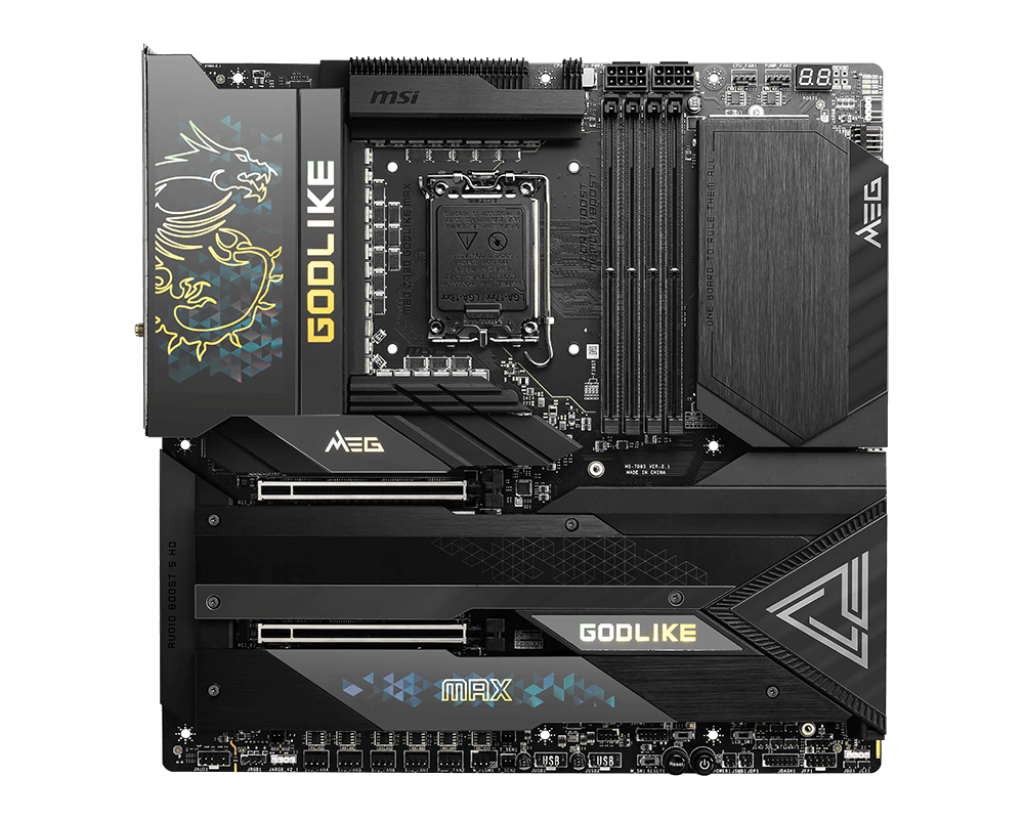

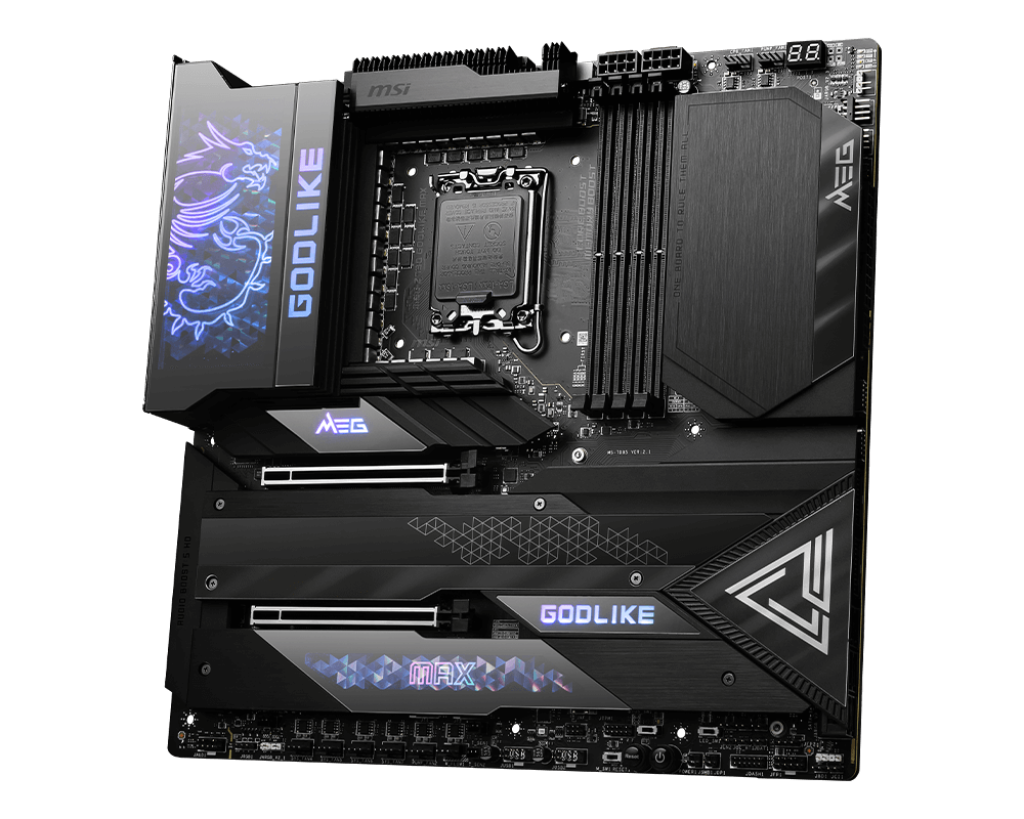

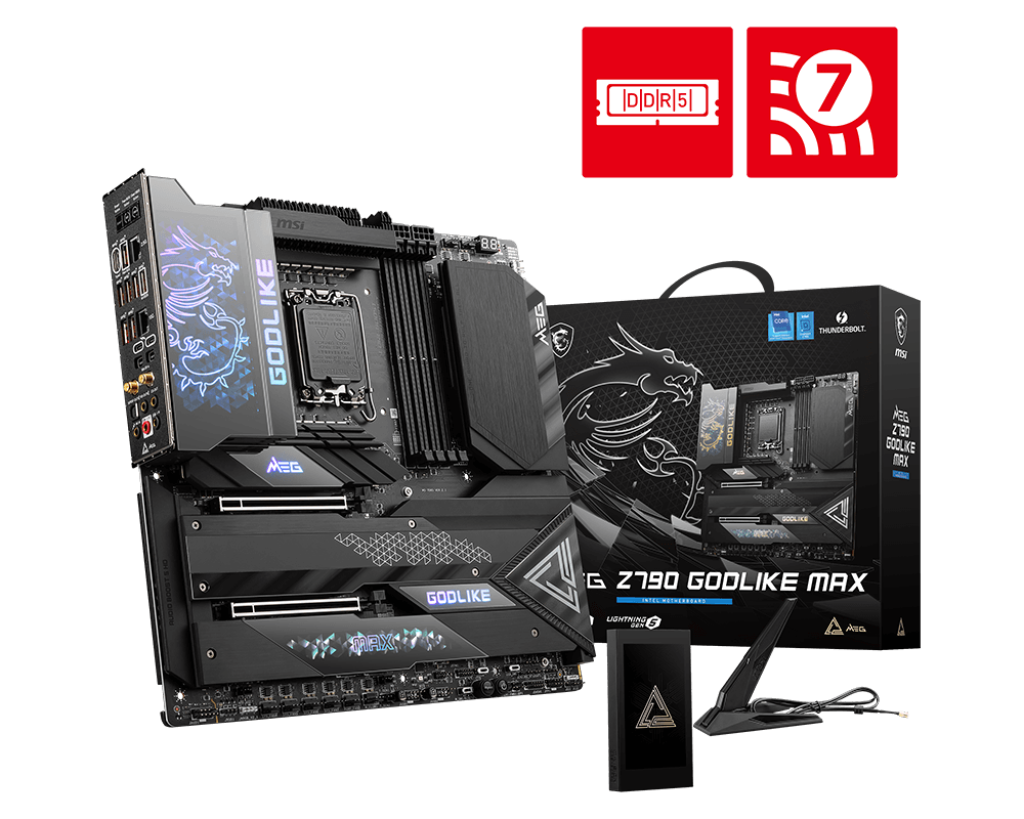

MSI MEG Z790 GODLIKE MAX

Overview:

The MSI MEG Z790 GODLIKE MAX is a top-tier flagship motherboard engineered for extreme performance, overclocking, and luxury high-end PC builds. Designed for 12th, 13th and 14th Gen Intel Core processors, it delivers unmatched power stability, premium thermal engineering, and next-generation connectivity.
With a fully armored design, integrated M-VISION touch display, thunderbolt support, advanced PCIe 5.0 slots, and extensive storage options, the Z790 GODLIKE MAX stands as one of the most advanced consumer motherboards ever created.

Full Specifications:

• Chipset: Intel Z790

• CPU Support:

  • Intel 12th / 13th / 14th Gen Core processors

  • Socket LGA 1700

• Form Factor: E-ATX

• Memory Support:

  • DDR5

  • Up to 192GB

  • 4 DIMM slots

  • Extreme overclocking support (8000MHz+ OC depending on CPU)

• VRM Design:

  • 26+2 phase power delivery

  • 105A Smart Power Stages

  • Premium heatsink design with heatpipe and fin array

• Expansion Slots:

  • PCIe 5.0 x16 slots (Steel Armor)

  • PCIe 4.0/3.0 configuration depending on GPU and storage usage

• Storage:

  • 1 × M.2 XPANDER-Z GEN5 Dual add-in card (2 × PCIe 5.0 M.2 slots)

  • Onboard M.2: up to 4 × PCIe 4.0 M.2 slots

  • 6 × SATA III ports

• Networking:

  • 10G LAN + 2.5G LAN

  • Wi-Fi 7

  • Bluetooth 5.x

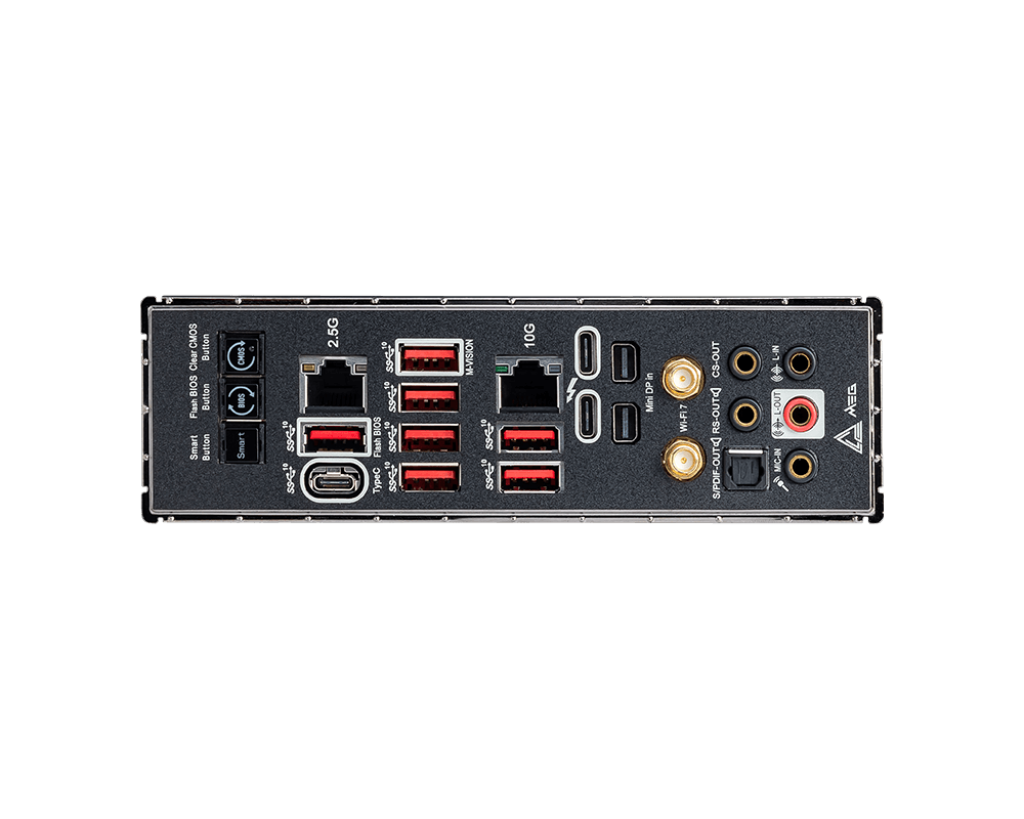

• Rear I/O Ports:

  • USB4 / Thunderbolt 4

  • USB 3.2 Gen 2x2 Type-C

  • Multiple USB 3.2 Gen 2/Gen 1 ports

• Audio:

  • Isolated audio circuitry

  • High-resolution ALC4082 codec

  • ESS SABRE DAC

• Special Features:

  • M-VISION Dashboard: 4.5" touch display for system monitoring & control

  • Dual BIOS with hardware switch

  • Extensive RGB + ARGB headers

  • Reinforced PCIe and memory slots

  • Extreme overclocking tools (Clear CMOS, Flash BIOS, Debug LEDs, OC buttons)

• Cooling Support:

  • Multiple PWM fan headers

  • Pump and AIO headers

  • Full-coverage M.2 Shield Frozr

• Ideal For:

  • Extreme enthusiast builds

  • Overclocking

  • High-end gaming and workstation systems

  • Luxury showcase PCs
