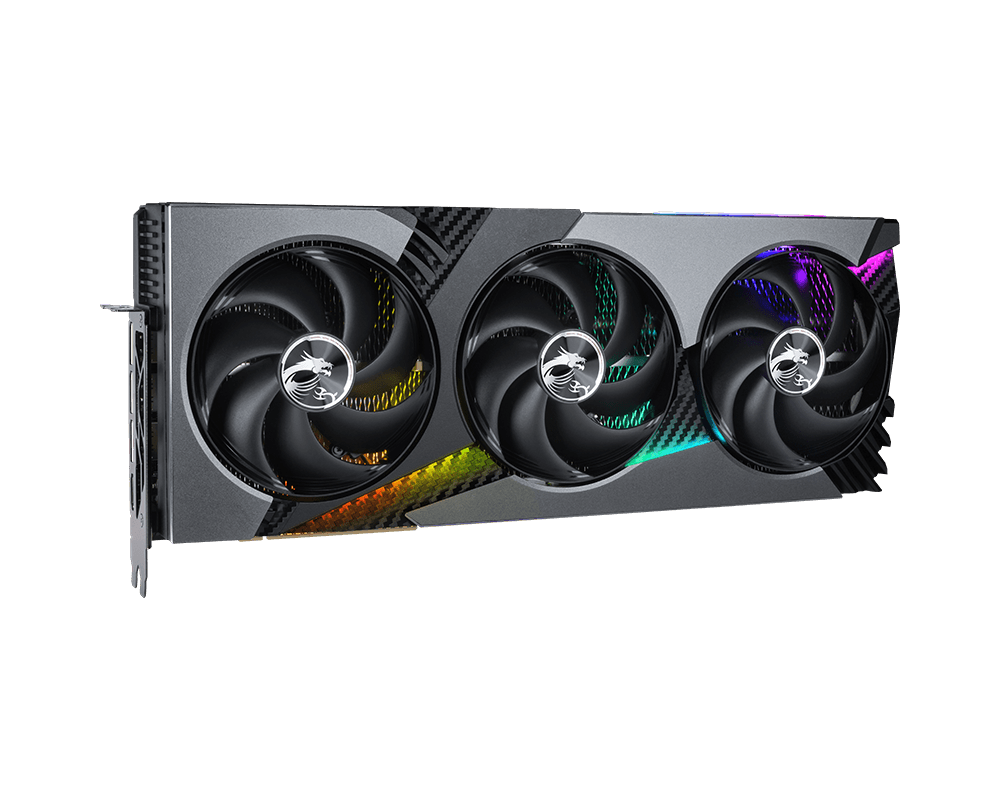

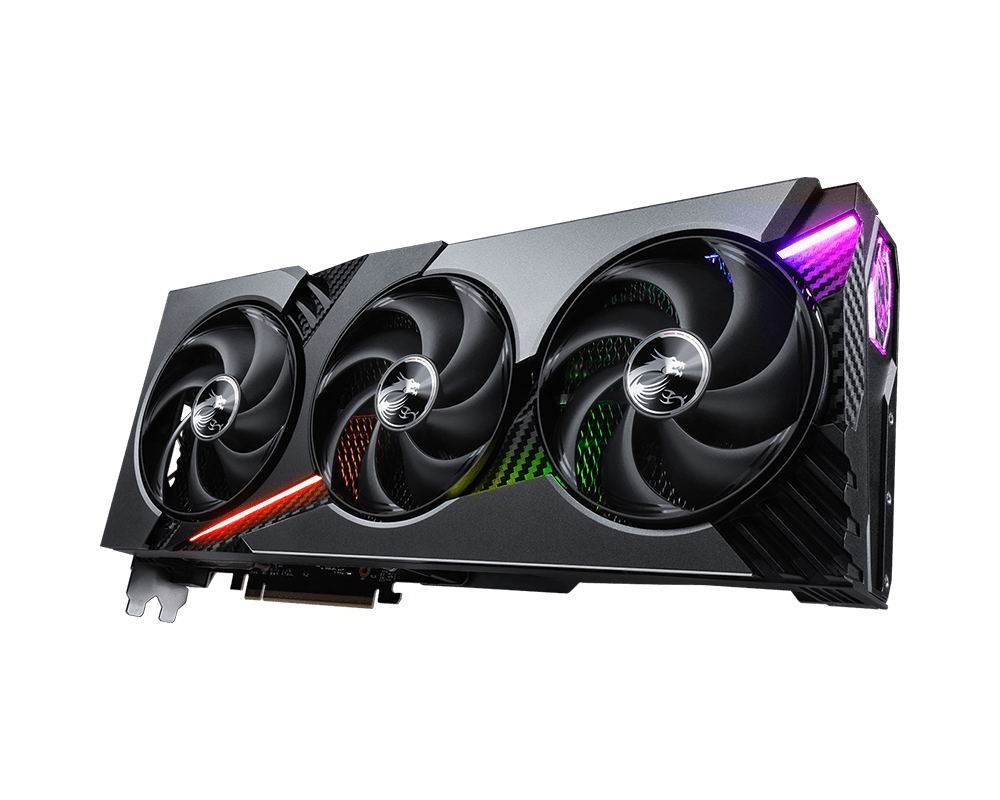

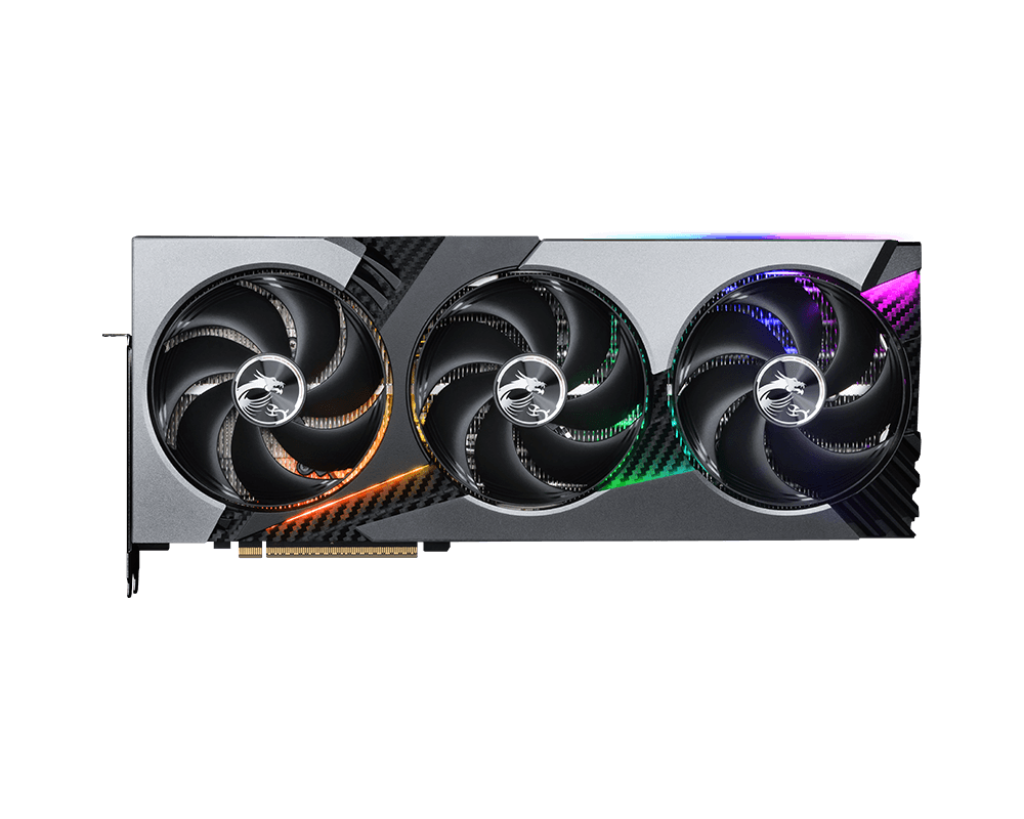

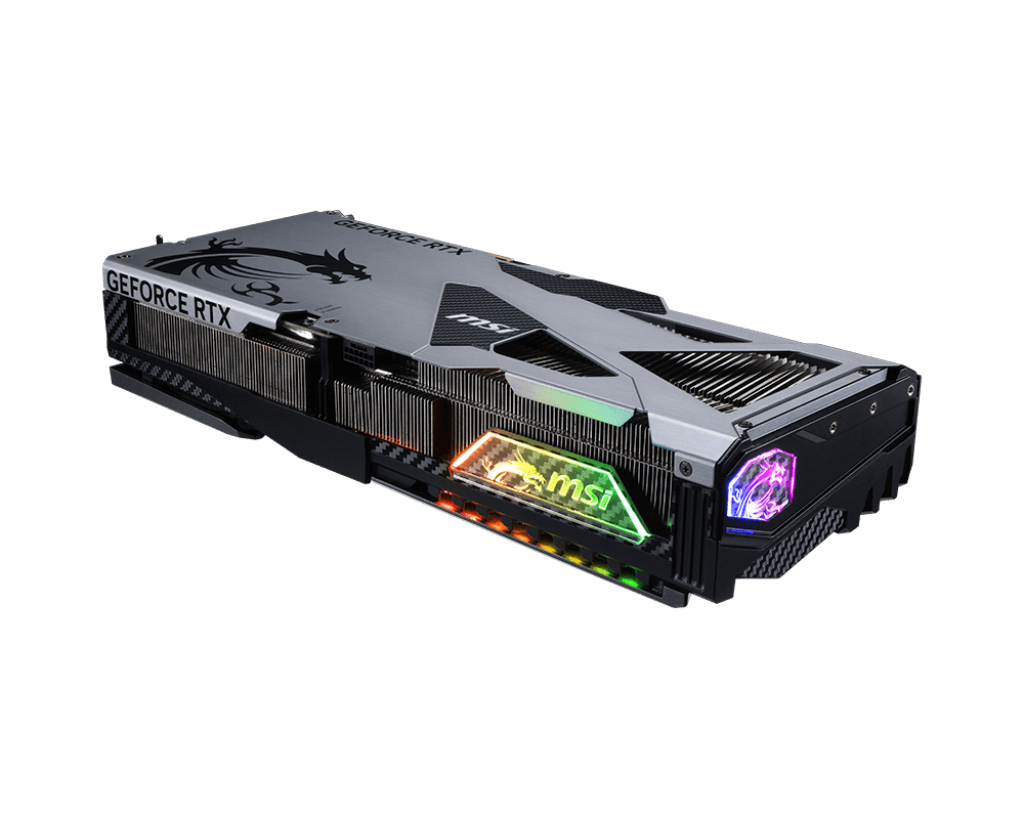

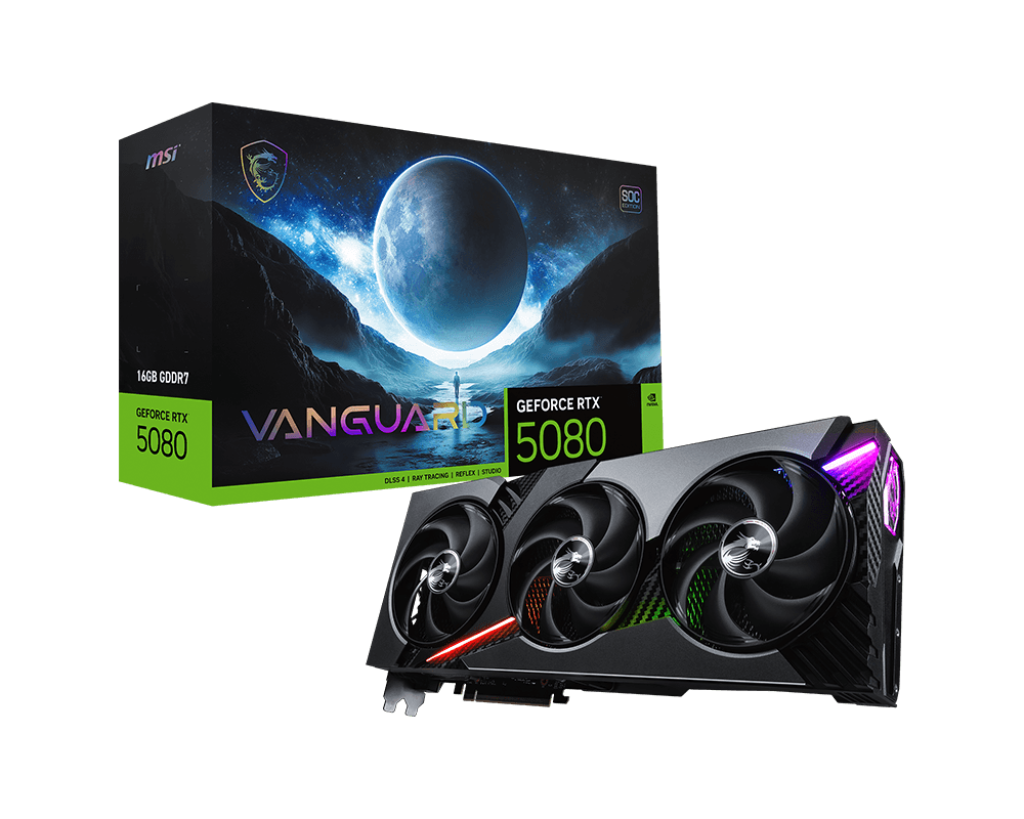

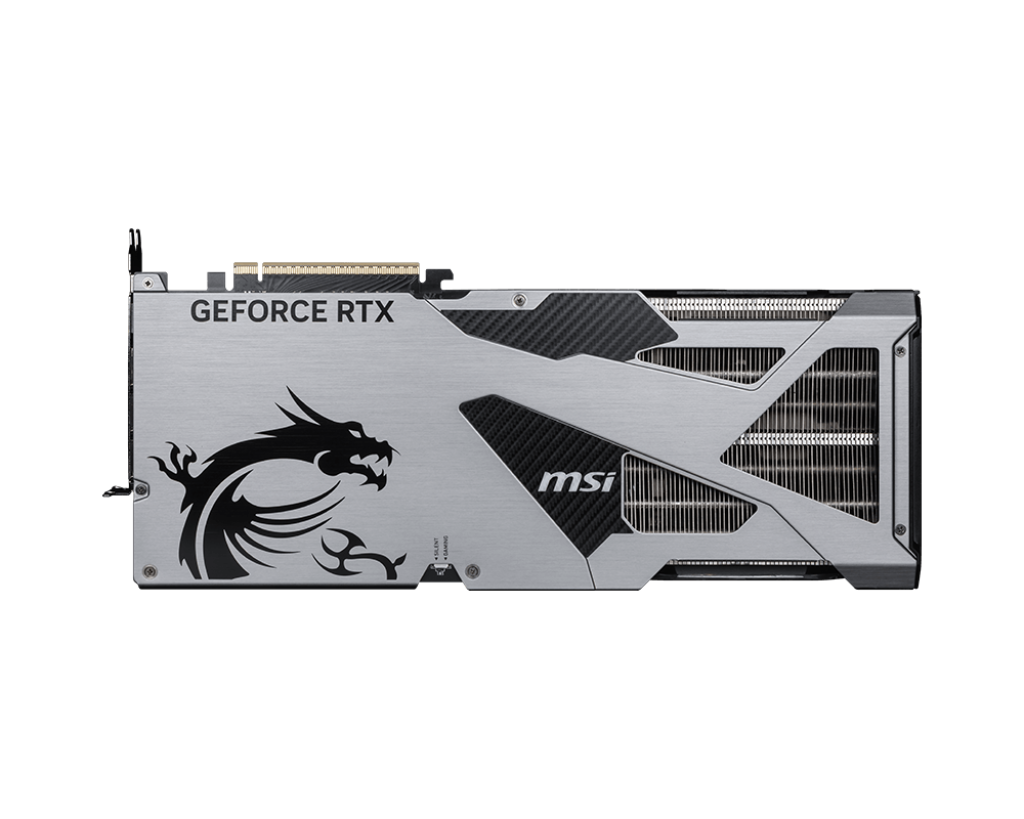

MSI GeForce RTX 5080 16G VANGUARD SOC

Overview:

The MSI GeForce RTX 5080 16G VANGUARD SOC is a high-performance next-generation graphics card engineered for elite 4K gaming and advanced AI-accelerated workloads. Built on NVIDIA’s Blackwell architecture, it features 16GB of ultra-fast GDDR7 memory, improved ray tracing capabilities, and significant AI performance enhancements. The VANGUARD SOC edition delivers factory overclocking, reinforced structural design, and an optimized thermal system for stable, quiet, and efficient operation during demanding gaming and creative tasks.

Full Specifications:

• GPU: NVIDIA GeForce RTX 5080

• Architecture: Blackwell

• CUDA Cores: approximately 16,384

• Memory: 16GB GDDR7

• Memory Bus: 256-bit

• Memory Speed: estimated 28 Gbps

• PCIe Interface: PCI Express 5.0 x16

• Boost Clock (SOC Edition): up to 2,750 MHz (varies by batch)

• Cooling System: MSI VANGUARD advanced dual/triple-fan thermal solution

• Maximum Resolution: 7680 × 4320 (8K)

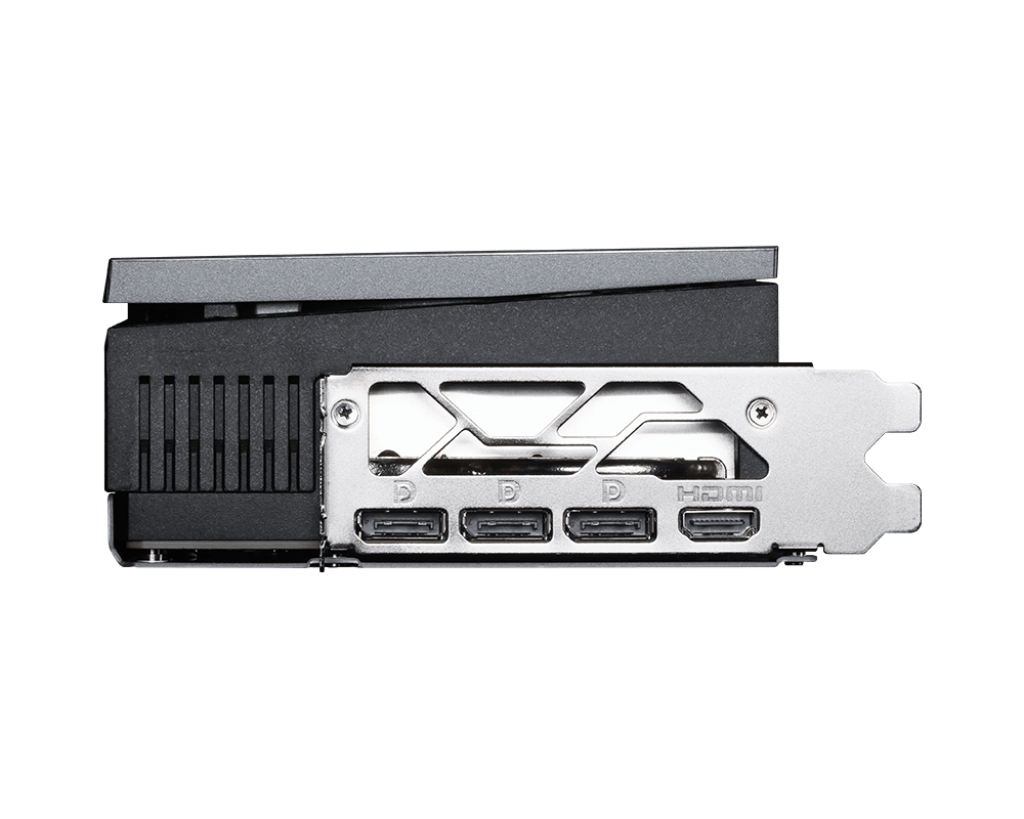

• Display Outputs: 3 × DisplayPort 2.1, 1 × HDMI 2.1

• Power Consumption: approximately 350–380W

• Recommended PSU: 750W or higher

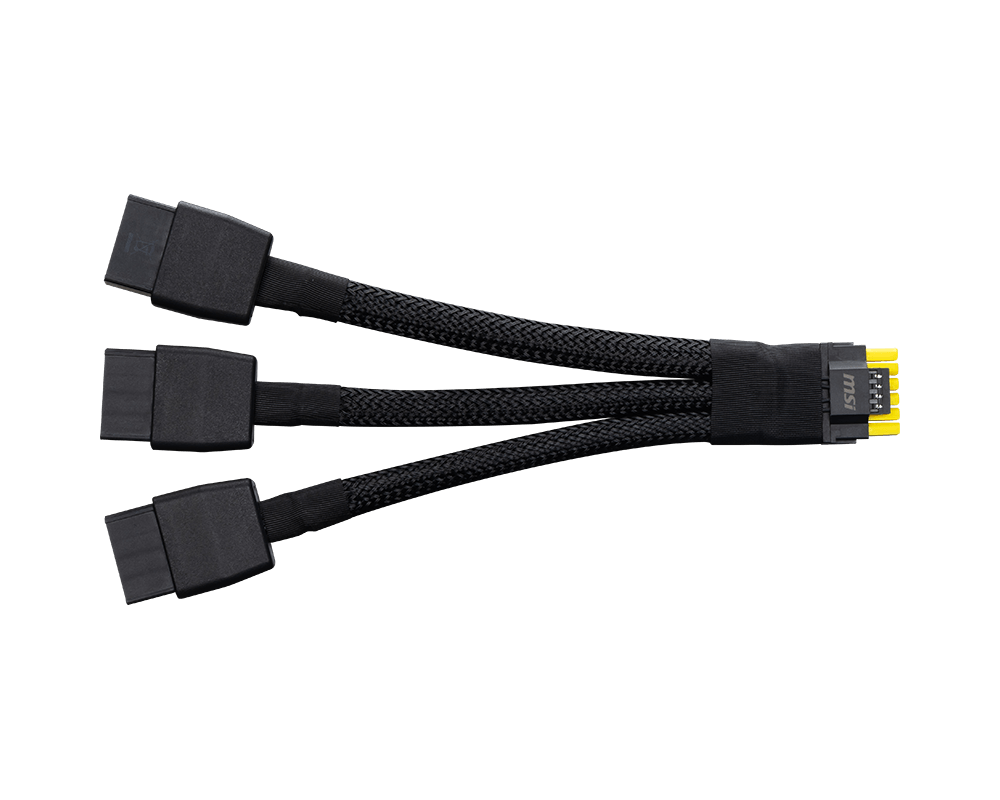

• Power Connector: 16-pin

• Ray Tracing: 4th-generation RT cores

• AI Acceleration: 5th-generation Tensor cores with DLSS 4 support

• Ideal For: 4K gaming, ray-traced titles, AI computation, rendering, video editing, and high-end enthusiast PC builds
