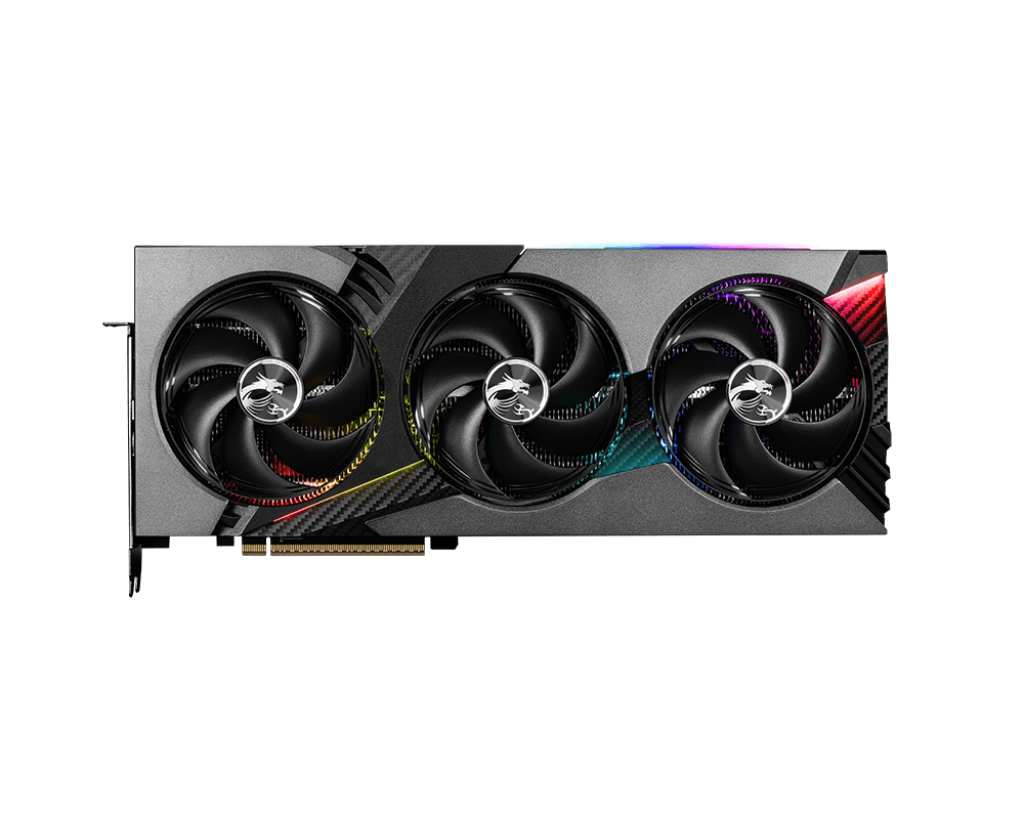

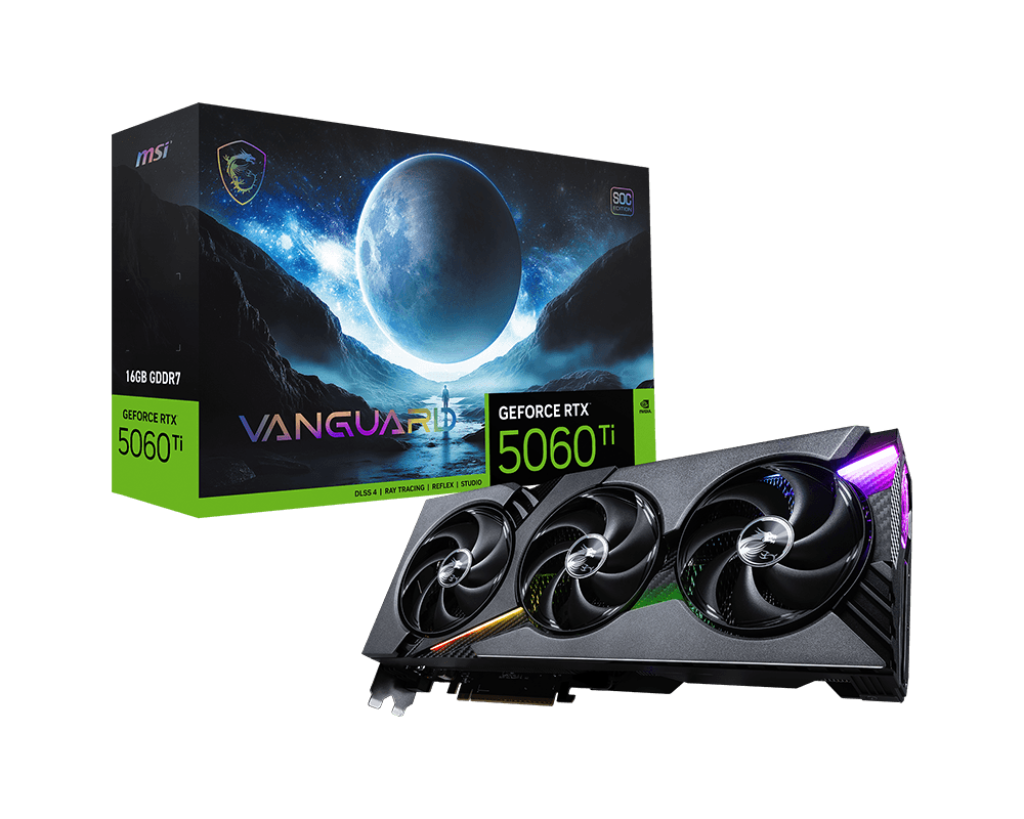

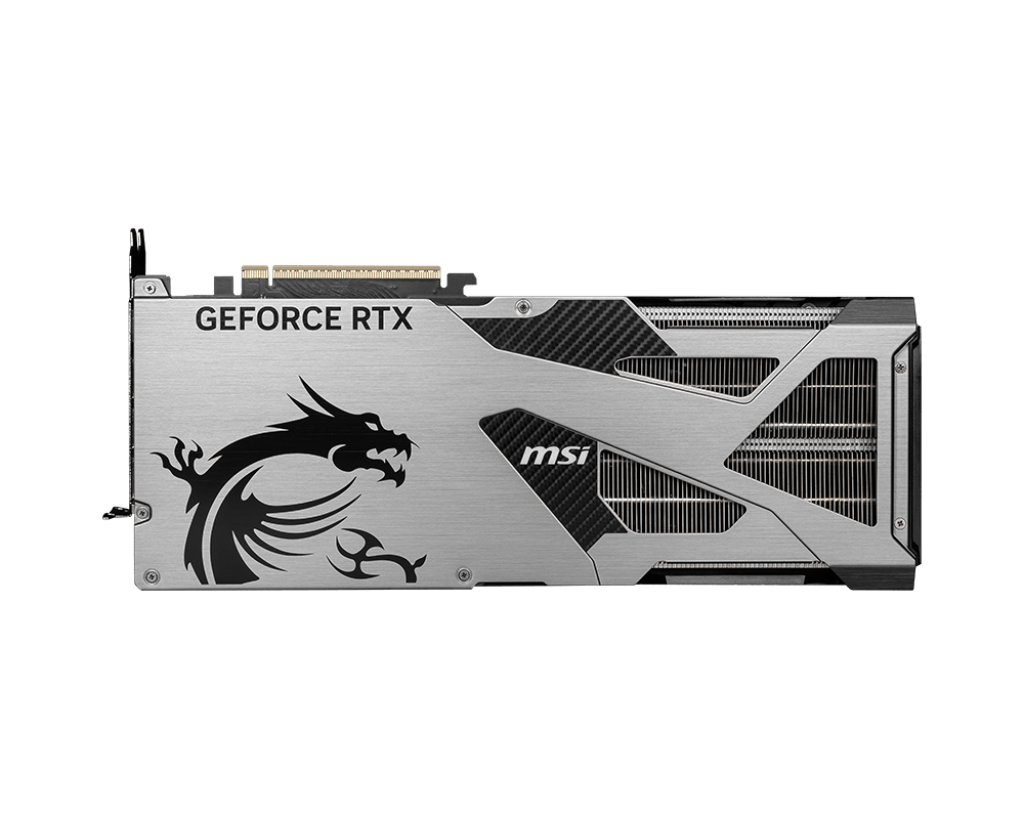

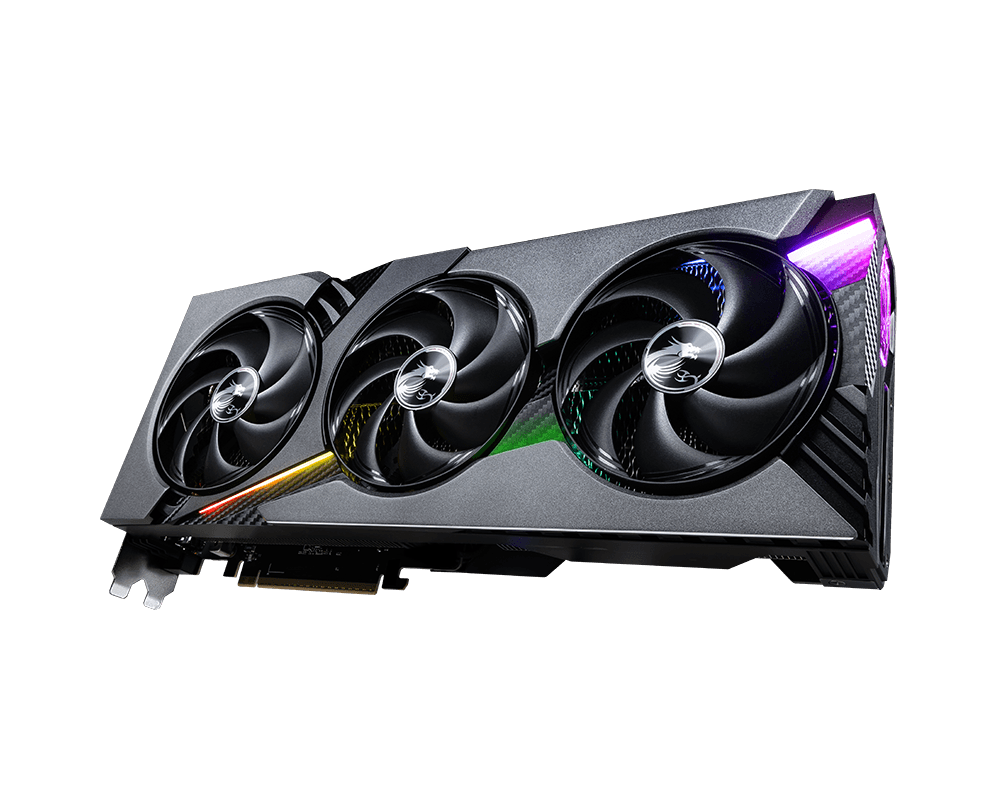

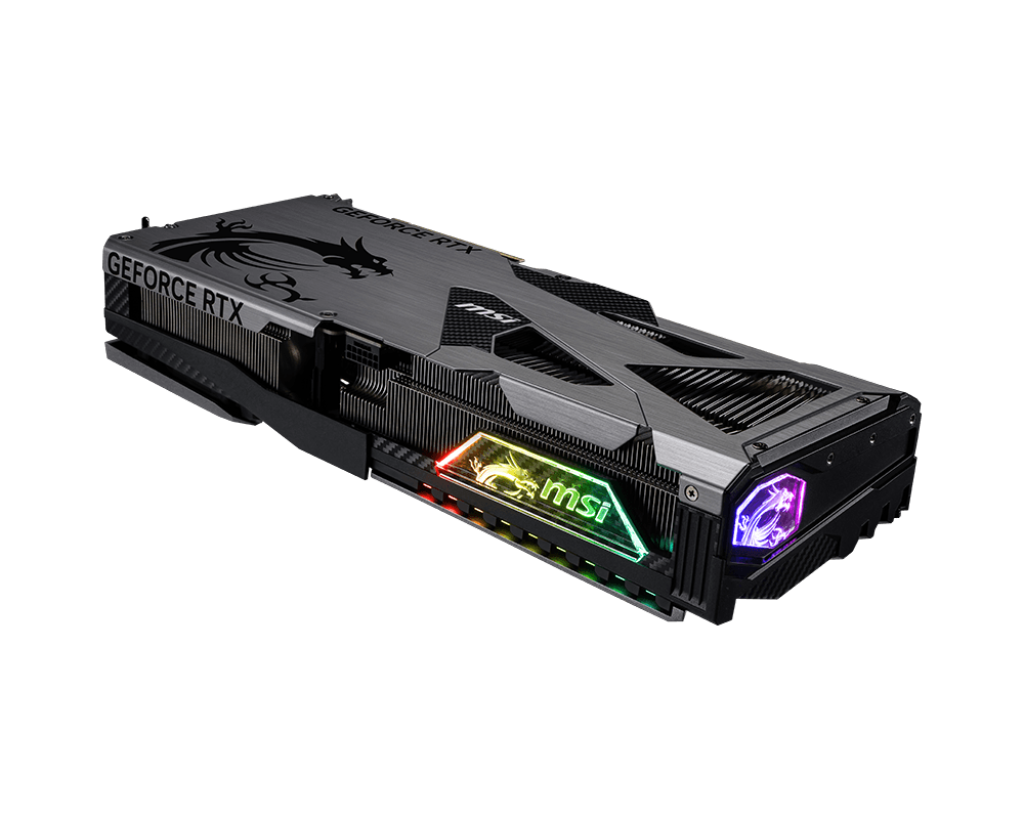

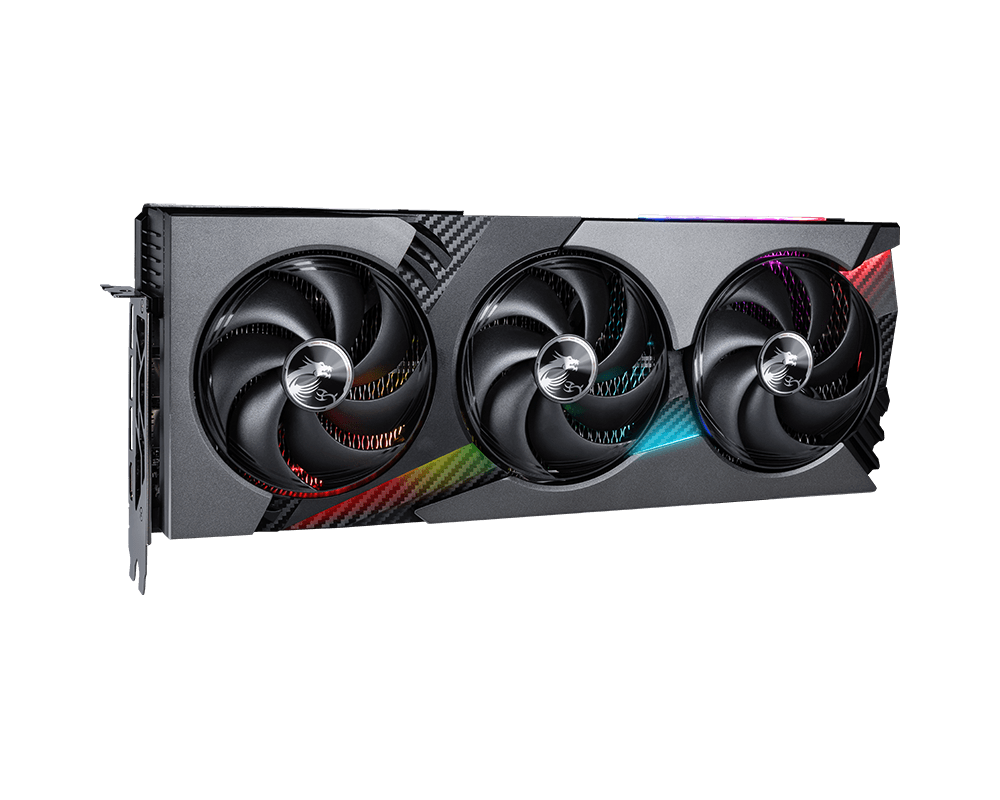

MSI GeForce RTX 5060 Ti 16G VANGUARD SOC

Overview:

The MSI GeForce RTX 5060 Ti 16G VANGUARD SOC is a next-generation mid-range graphics card designed for high-performance 1080p and 1440p gaming. Based on NVIDIA’s Blackwell architecture, it features 16GB of high-speed GDDR7 memory, enhanced AI acceleration, and improved ray tracing efficiency. The VANGUARD SOC edition includes factory overclocking, reinforced power delivery, and an optimized dual/triple-fan cooling system engineered for quiet and stable performance during demanding gaming sessions.

Full Specifications:

• GPU: NVIDIA GeForce RTX 5060 Ti

• Architecture: Blackwell

• CUDA Cores: approximately 6,400

• Memory: 16GB GDDR7

• Memory Bus: 128-bit

• Memory Speed: estimated 24–26 Gbps

• PCIe Interface: PCI Express 5.0 x16

• Boost Clock (SOC Edition): up to 2,700 MHz (varies by batch)

• Cooling System: MSI VANGUARD dual/triple-fan thermal design

• Maximum Resolution: 7680 × 4320 (8K)

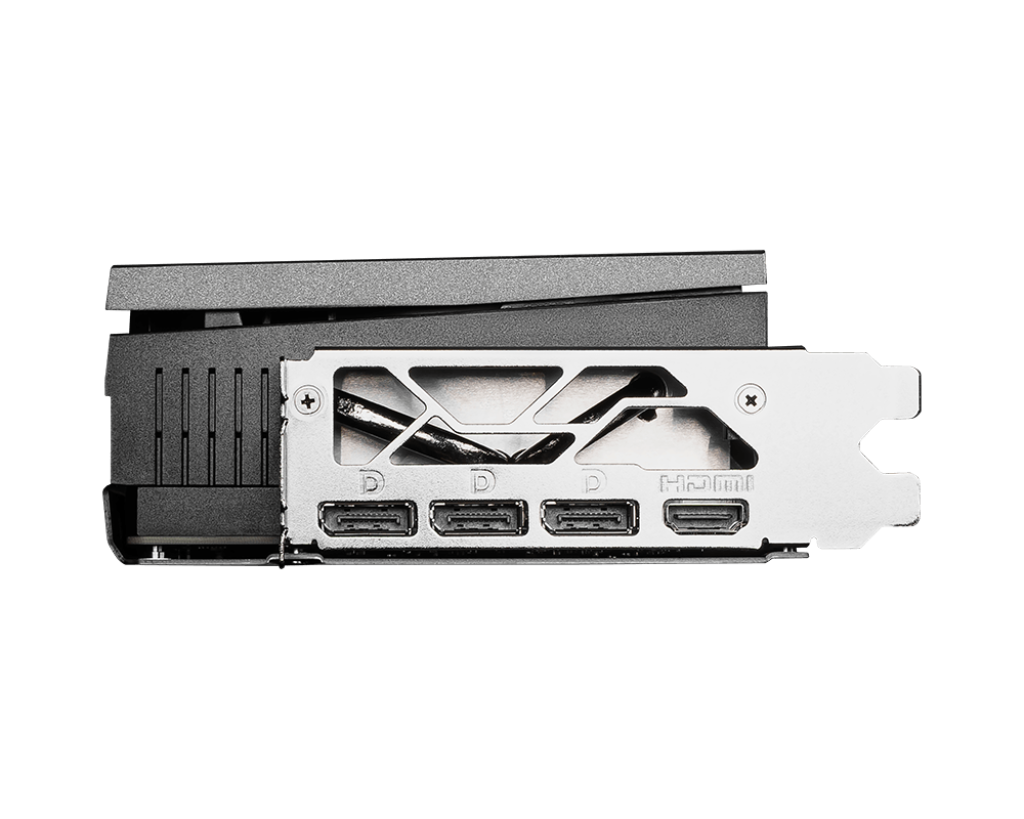

• Display Outputs: 3 × DisplayPort 2.1, 1 × HDMI 2.1

• Power Consumption: approximately 200–220W

• Recommended PSU: 600W or higher

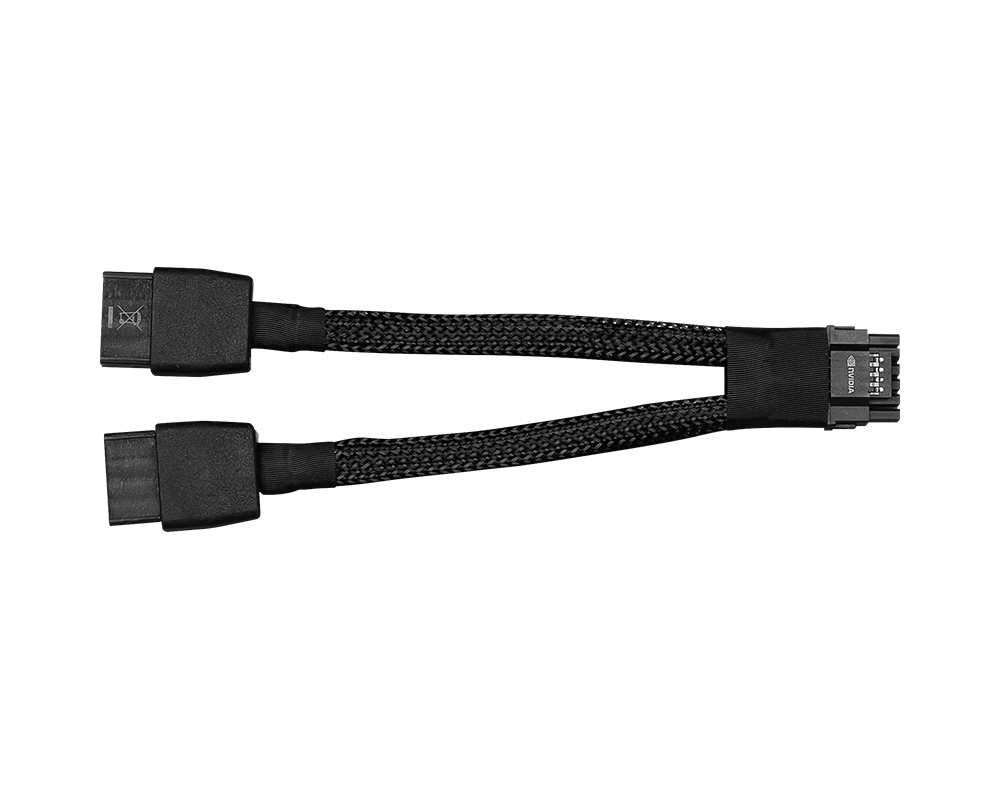

• Power Connector: 16-pin

• Ray Tracing: 4th-generation RT cores

• AI Acceleration: 5th-generation Tensor cores (DLSS 4 support)

• Ideal For: 1080p ultra gaming, 1440p gaming, ray tracing, eSports titles, creator workloads, and AI-enhanced applications
